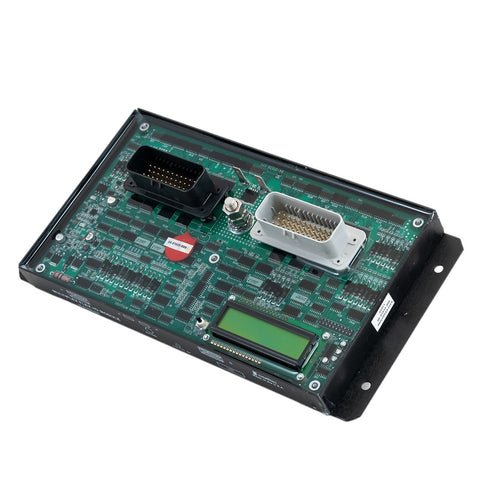

The Mega Module 00-01039-000 is a member of Intellitec`s Programmable Multiplex Control family.
It works in combination with our PMC multiplex system and the new IPLC Control plus standard, semi-custom, or custom I/O modules.
The module can be used on either 12 or 24 volt systems.
The module provides power switching, with electronic over-load protection, and distribution.
Switching is accomplished via long life, field effect transistors.
The total module current is limited to 80 Amps total.
Each output channel is programmable to respond to any of the 160 channels on a PMC loop.
They can be paralleled to provide greater output capability.
A number of parameters of the module are programmable, by the user, to provide a great deal of flexibility in its application.
These parameters are set using a GUI on a PC and loaded into the module through an on-board port.
Each output channel is pre-set from the factory to an anticipated minimum load value.
There are a total of 38 FET output channels in the Flex module.
PLEASE NOTE: can not Exceed 80Amps.
